100W CMY IP66 Outdoor Waterproof Beam Laser Moving Head Light Projector Stage Concert Laser Moving Light
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Intuiit |
| إصدار الشهادات: | CE&RoHS |
| رقم الموديل: | xy-052p |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | MOQ 20PCS |
|---|---|
| تفاصيل التغليف: | صندوق داخلي + كرتون رئيسي/حقيبة طيران |
| وقت التسليم: | 25-35 يوم للترتيب الجماعي |
| شروط الدفع: | T/T مقدمًا (إيداع 30 ٪ ، 70 ٪ دفع الرصيد قبل التسليم) |
| القدرة على العرض: | 5000 قطعة/شهر |
|
معلومات تفصيلية |
|||
| مصدر: | 100W ليزر | CCT: | 10000K |
|---|---|---|---|
| CRI: | 75 | زاوية الشعاع: | 0.8 درجة |

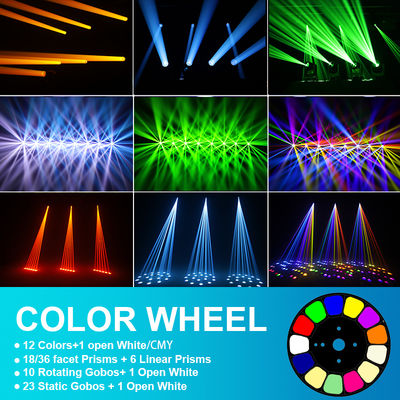

| عجلة الألوان: | 12+1Open | قزحية: | CMY |
| عجلة غو تدور: | 10+1 مفتوحة | عجلة غو ثابتة: | 23+1open |
| الابتدائية: | 18/36 PRISM FACET + 6 PRISM خطي | درجة الملكية الفكرية: | IP66 |
| إبراز: | 100W outdoor waterproof laser moving head,IP66 beam laser stage light,CMY concert laser moving head,IP66 beam laser stage light,CMY concert laser moving head |
||
منتوج وصف
Unleash the full potential of your productions with the Dasen Imager B100—a compact moving head engineered for the modern stage. This fixture redefines versatility by merging advanced optical innovation with robust build quality. Key features include a patented 8-color wheel plus CMY mixing for an infinite color palette, alongside 23+1 fixed and 10+1 rotating gobos for unmatched pattern flexibility. The ultra-bright prism effects create deep, multi-layered textures that elevate audience engagement. Built with an IP66 rating, it guarantees pristine performance in any environment, from dusty festivals to rain-soaked outdoor events. Whether for concert touring, theatrical runs, or high-end live events, the Imager B100 delivers studio-grade precision with absolute reliability.
Technical Data
| Item No. | XY-052P |
| Light Source | 100W Laser |
| CRI | 75 |
| Iris | CMY |

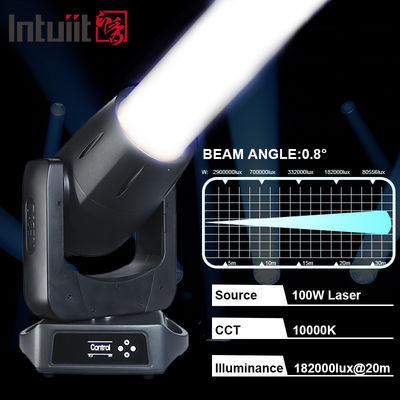

| Beam angle | 0.8Degree |
| Luminous flux | 182000LM@20m |
| Control Protocol | Art-Net, sACN,RDM, DMX |
| DMX Channels | 15/26CH |
| IP Grade | IP66 |
| Product's dimension | 356*246*586MM |
| Net Weight | 22KG |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
